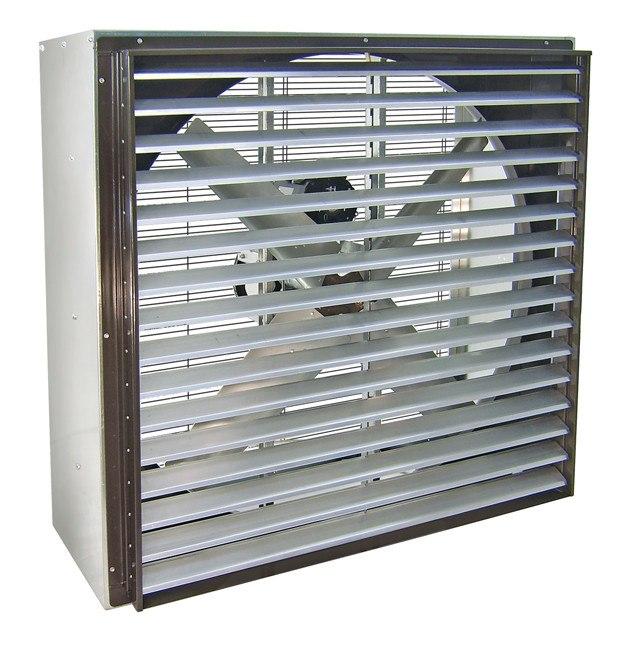

VIK Cabinet Exhaust Fan w/ Shutters 48 inch 28800 CFM 230V Belt Drive VIK4819-W
"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish. "VIK" Series fans are a combination of the VI series fan, a heavy duty intake screen guard and an automatic exhaust shutter for convenient installation. The safety guards and guards meet OSHA requirements.
Triangle’s Exclusive “X-Wing” Belt Tensioner
Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 h.p. have the standard stationary motor and bearing mounts.
NOTE: This product is non-returnable and cannot be cancelled.
Dimensional Data:
A = 52-3/4"
B = 52-3/4"
C = 34"
Specification:
- Model No.: VIK4819-W
- Voltage:230
- Warehouse:Arkansas
- Made In U.S.A.:Yes
- Type:Exhaust
- Amps:23
- Blade Material:Steel
- Blade Size (Inches):48
- No. of Blades:4
- CFMHigh:28800
- Dimension Inches:Width: 52-3/4" Depth: 34" Height: 52-3/4"Drive T
- ype:Belt
- Horsepower:5Limited
- Warranty:1 Year Limited
- Motor Type:ODP
- Phase:1
- Speed(s):1Weight
- lbs.:425
