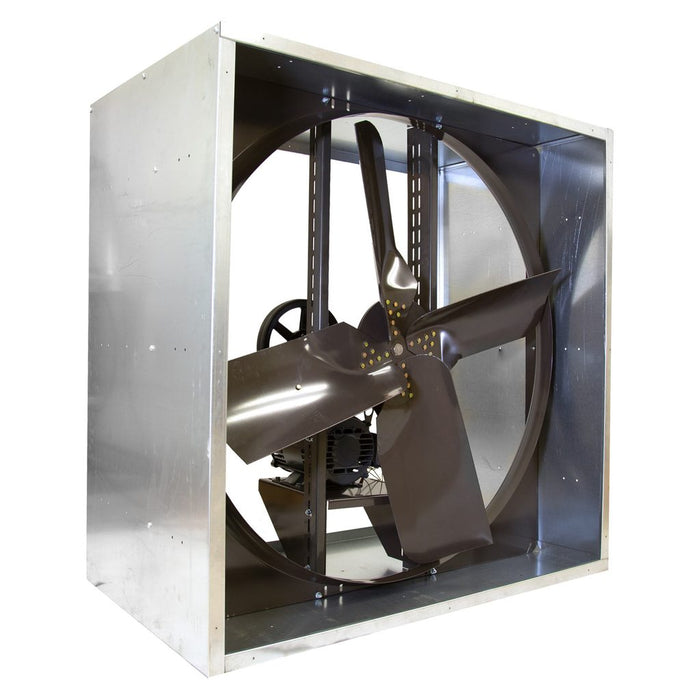

"VI" Series Industrial fans are designed for use in factories, steel mills, machine shops or anywhere large volumes of warm or stagnant air must be removed. Standard units are available from 1/3 hp to 5 hp (4,100 CFM to 43,100 CFM). VI fans feature extra-heavy-duty steel components & frame with a unique fastening system for easy field adjustment. The painted surfaces have a durable powder-coat finish.
Triangle’s Exclusive “X-Wing” Belt Tensioner

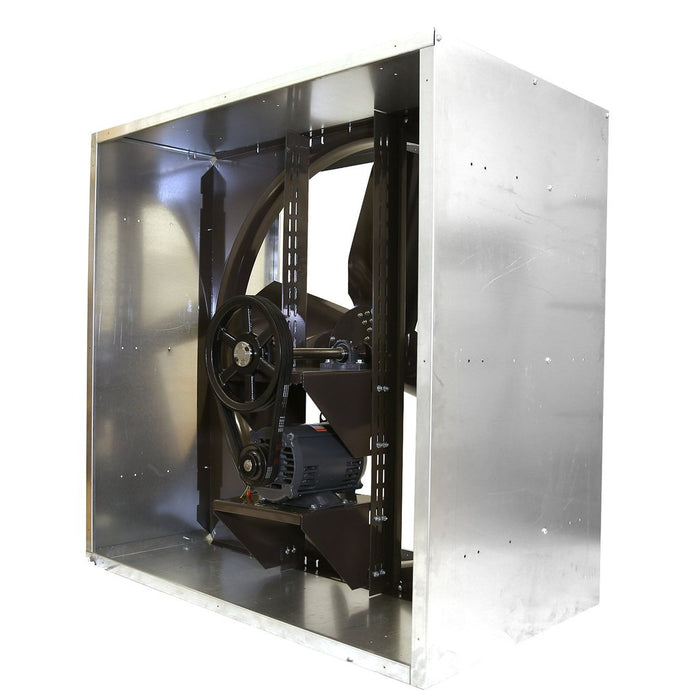

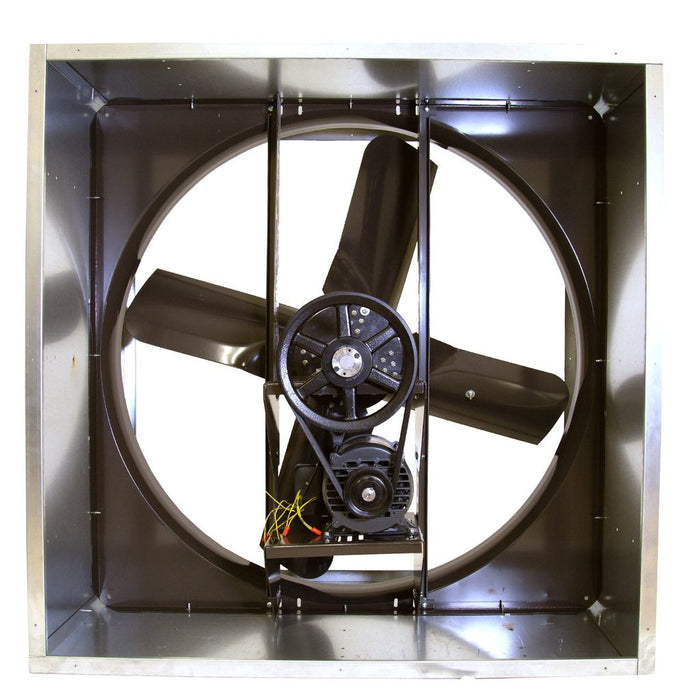

Incorporates the motor and bearing mounts along with a super efficient Belt Tensioner to enhance the life of the motor. It is standard equipment on the VI 2412 through the VI 4816. Fans with motors larger than 11/2 h.p. have the standard stationary motor and bearing mounts.
* Explosion proof motors are Class I, Div. 1, Group D, and Class II, Div. 1, Groups F & G.
Note: VI Series 54 in and 60 in fans shipped F.O.B. Factory and are pre-wired 460/3 from factory.
* The perfect exhaust fan for paint booths.
NOTE: This product is non-returnable and cannot be cancelled.
Dimensional Data:
A & B = 68 7/8" SQ
C = 20" (HL Fan - add 10 inches to depth)
Specification:
- Model No.: RVI6019HL-X
- Voltage:230 / 460
- Warehouse:Arkansas
- Made In U.S.A.:Yes
- Type:Explosion Proof
- Blade Material:Aluminum
- Blade Size (Inches):60
- No. of Blades:4
- CFM High:43500
- Dimension Inches:Width: 68 7/8" Depth: 30" Height: 68 7/8"
- Hertz:60Drive
- Type:Belt
- Horsepower:5Limited
- Warranty:1 Year Limited
- Motor Type:Explosion
- ProofPhase:3
- Speed(s):1
- Weightlbs.:440
