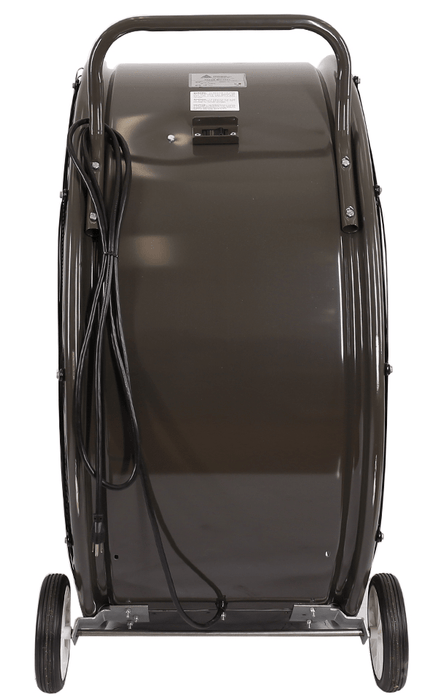

Portable Explosion Proof Barrel Cooling Fan 42 inch 14445 CFM Belt 3 Phase TPC4213-HL-X
The “Heat Buster” Fans are belt driven, rugged, low-cost air movers. They are used world-wide to spot cool assembly lines, machine shops, bakeries, loading docks, laundries, gymnasiums, auto repair facilities, warehouses... anywhere a high volume of air movement is required.
Heat Busters Feature:
Heavy gauge steel barrels
Attractive, durable, bronze finish
115 volt, 60 hertz, single phase, one or two speed motors
Totally enclosed & hazardous location motors available
Multiple models to meet any application
Deep pitched blades for maximum air flow
10' grounded, 3 conductor cord with molded plugs (HL Units have no cord and plug)
Conveniently located, easy grip handles and switches
Spiral wound wire guard, meets OSHA requirements
Backed by Triangle’s exclusive limited warranty
HL Fans Have:
Motors are Class I, Div. I, Group D and Class II, Div. I, Groups F & G
One speed explosion proof motor
Aluminum Blade
No power switch
No wiring
| Specifications | |
| Model No.: TPC4213-HL-X | Voltage:230 / 460 |
| Warehouse: Arkansas | Made In U.S.A.: Yes |
| Type: Explosion Proof | Amps:15.2 / 7.6 |
| Blade Size (Inches):42 | No. of Blades:4 |
| CFM High:14445 | Dimension Inches: Width: 45" Depth: 25" Height: 47" |
| Hertz:60 | Drive Type: Belt |
| Horsepower:1/2 | Limited Warranty:1 Year Limited |
| Motor Type: Explosion Proof | RPM High:500 |
| Phase:3 | Speed(s):1 |
| Weight lbs.:153 |
